The Base-Guard 24V Wall mount is a battery-operated safety fog machine that can be used in rooms up to 200 m³. Offices, shops, gas stations, production rooms, or storage rooms can be protected by the device. Thanks to its unique evaporator technology, the Base-Guard 24V Wall Mount has an extremely low power consumption in standby mode, but is still heated up in under two seconds and produces thick white fog. Active for up to 4 weeks without power, and retains programming for up to 12 months when disconnected from power. The Base-Guard 24V Wall Mount has an interface card with numerous inputs and outputs so that it can be connected to a wide variety of alarm systems.
Battery-Operated Safety Fog Machine.
The integrated battery pack is equipped with lead-gel batteries and provides up to 4.5 minutes of fog duration. The integrated charger charges the battery within six hours. The fluid tank contains 600ml of highly concentrated special fluid, which creates a very dense, harmless mist. The tank is integrated into the device and is sufficient for up to 6 minutes of continuous fog. The fog outlet nozzle can be swiveled and adjusted between 0 and 60°. A PC interface enables parameterization and readout of the internal logbook.
Features
- Active for up to 4 weeks without power.
- Unique evaporator technology.
- Produces thick white fog.
- Up to 4.5 minutes of fog duration.
Specifications
| Power | 3000 watts |
| Battery pack | Lead-gel battery, 24 V, 22 Ah |
| Mains connection | 90-264 V (47-63 Hz), 120 W. |
| Standby time | Installation-specific |
| Standby time without network | 4 weeks |
| Heating time | <2 seconds |
| Control | Activation, triggering, verification, two triggers, BMA |
| Outputs | Triggered, sabotage, ready for operation, error (battery monitoring, power failure, no fluid, internal error) |
| Sensors | Fluid sensor, sabotage, battery monitoring |
| Programming | PC via USB |
| Fog time | Programmable |
| Logbook memory | 64 temporary entries, 64 permanent entries |
| Logbook memory | 64 temporary entries, 64 permanent entries |

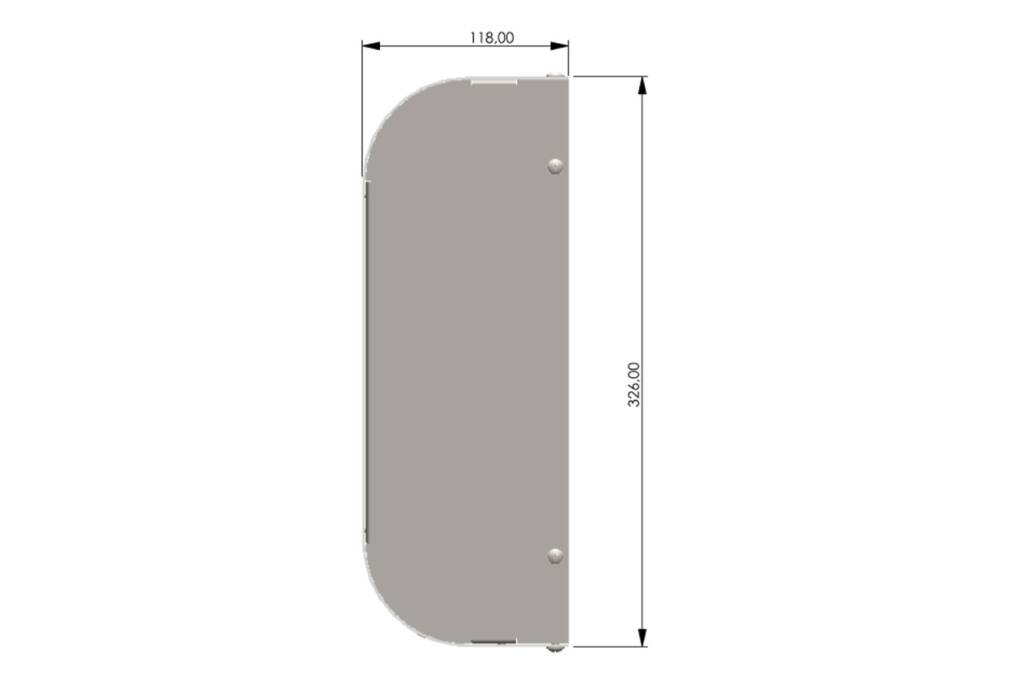

| Dimensions (L x W x H) | 550 x 326 x 118 mm |
| Weight | 27 kg |
