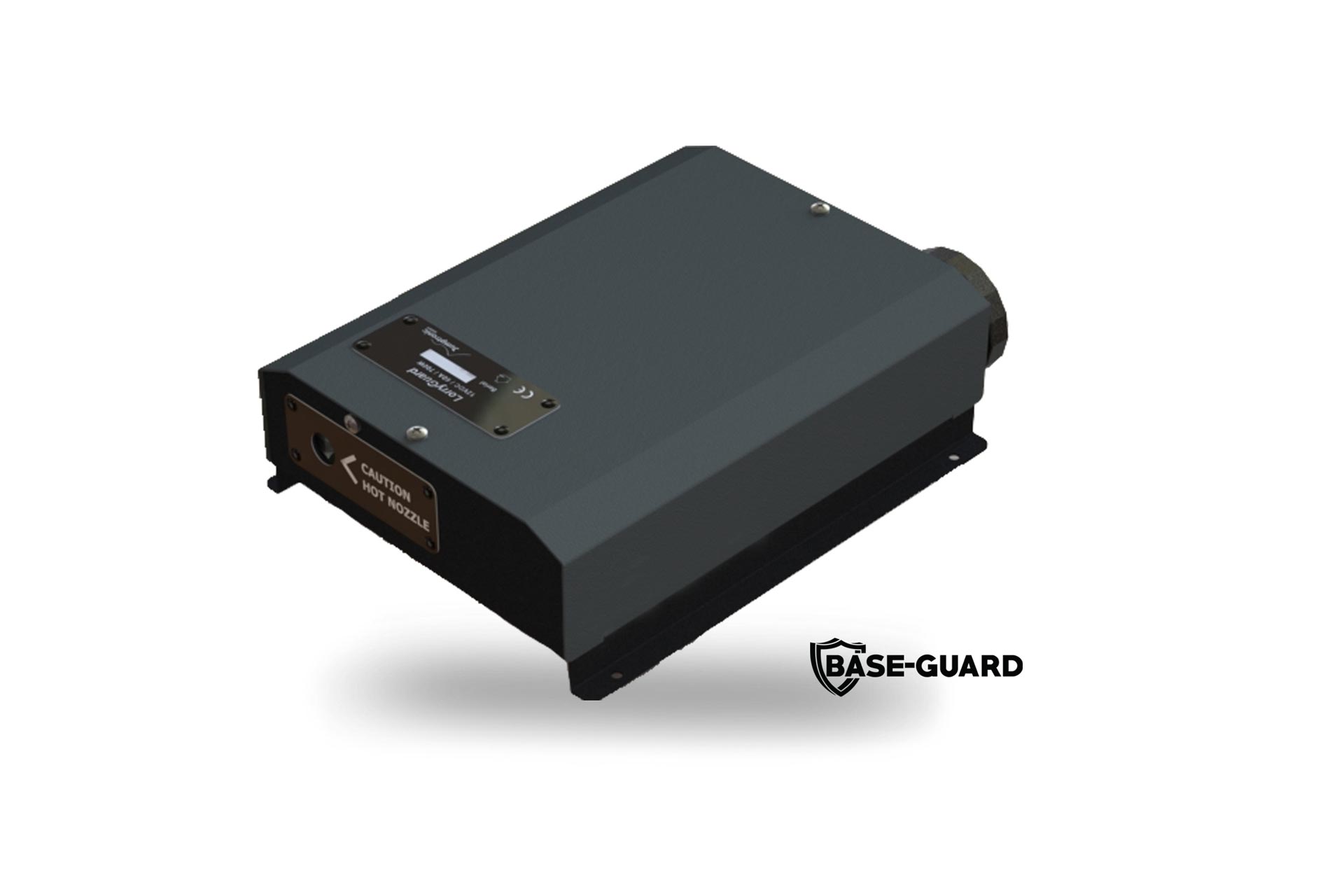

The Base-Guard 12V is a powerful, battery-operated safety fog machine for use in vehicles, money transporters, caravans, mobile homes, yachts, containers, construction machinery, etc. Thanks to its unique evaporator technology, the Base-Guard 12V has extremely low power consumption in standby mode. In less than two seconds heat up produces a thick white fog. Active for up to 3 months without reloading. In connection with Base-Guard Battery, it’s very compact and weighs less than 1.5kg to allow a wide variety of installation options.
Powerful & Safety Fog Machine

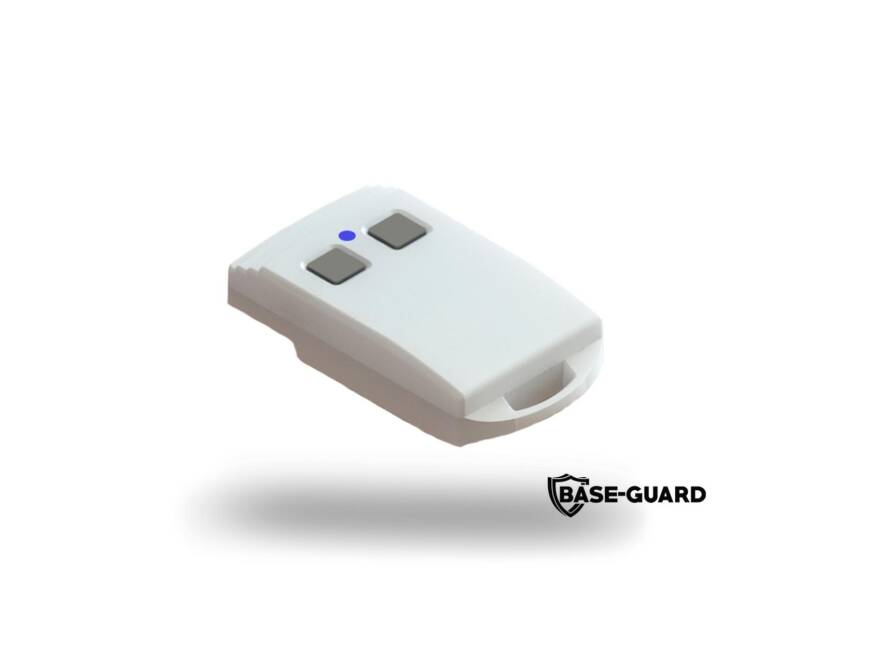

Designed to be a stand-alone device capable of operating in line with a deployment trigger. The fluid tank holds 55ml of highly concentrated special fluid, which creates a very dense, harmless mist. The tank is screwed into the device and can be changed without much effort. The content is sufficient for 2.5 minutes of continuous fog. A PC interface enables parameterization and readout of the internal logbook. A fluid sensor, radio remote control, and a modern lithium-ion battery are available.
Features
- Unique evaporator technology.
- Active for up to 3 months without reloading.
- Compact and weighs less than 1.5kg.
- 2.5 minutes of continuous fog.
Specifications
| Power | 720 watts |
| Operating voltage | 12 V DC (battery operated) |
| Heating time | <2 seconds |
| Standby time | 3 months (with 6300mAh battery) |
| Fluid consumption | 20 ml/min |
| Tank capacity | 55 ml |
| Control | Ignition, activation, release (trigger low or high active) |
| Outputs | Status, errors, external devices |
| Bus system | For fluid sensors and smart batteries |
| Programming | PC via USB |
| Fog time | Programmable up to 2.5 minutes with 55ml cartridge |
| Break time | Programmable |
| Logbook memory | 64 temporary entries, 64 permanent entries |

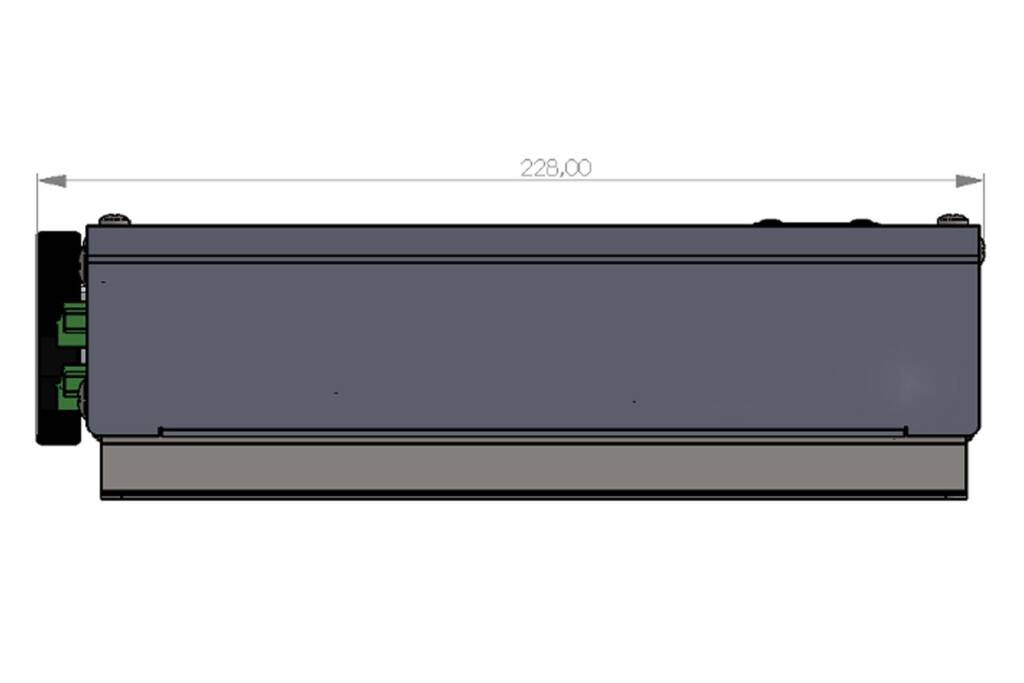

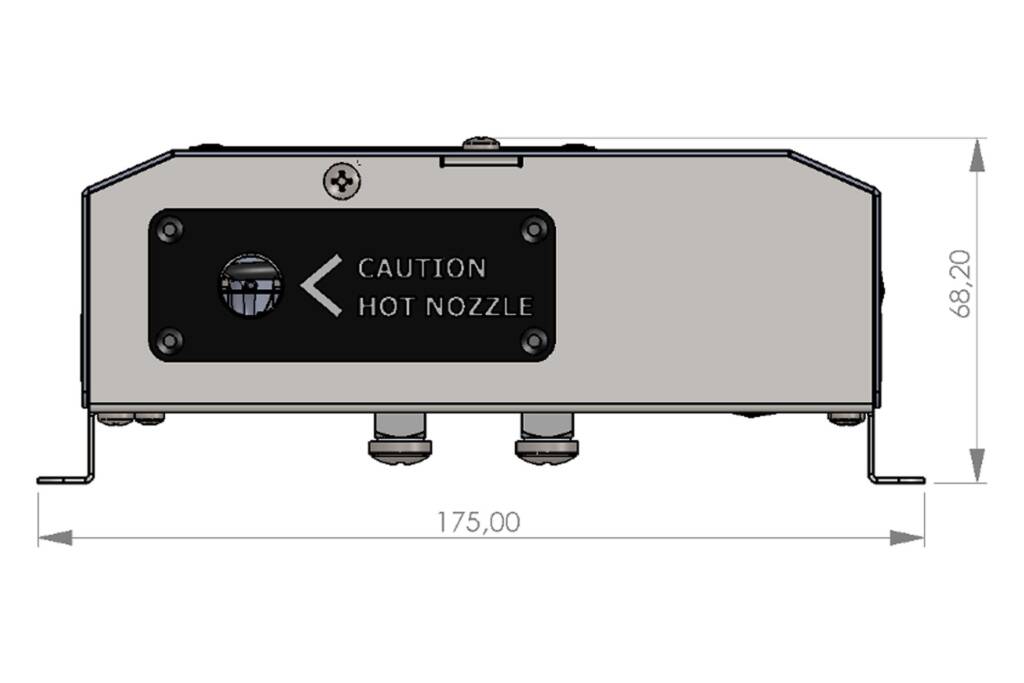

| Dimensions (L x W x H) | 228 x 175 x 68.2 mm |
| Weight | 1400 g |
Related Products
Specially formulated specifically for the Base-Guard Battery machines.

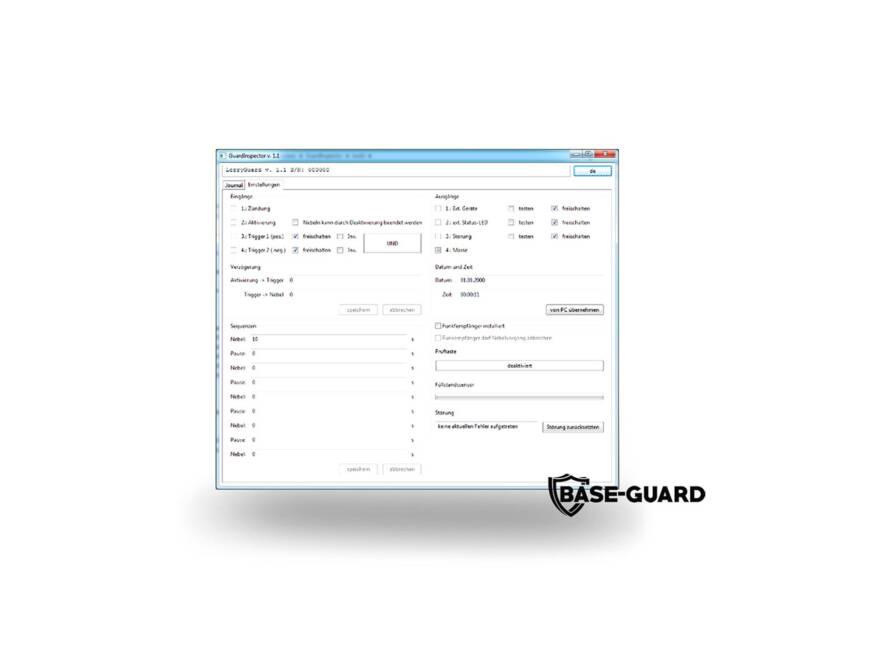

The GuardInspector is an application for Windows to configure the Base-Guard from a PC or Notebook.
Provides flexibility for your Base-Guard product.

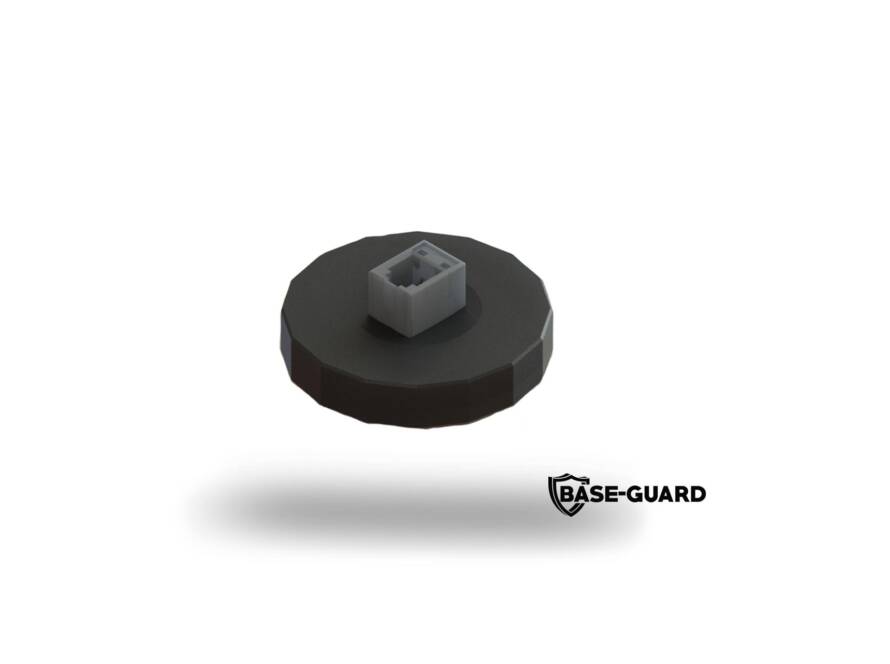

Tank level sensor designed to indicate fluid levels in a tank.
